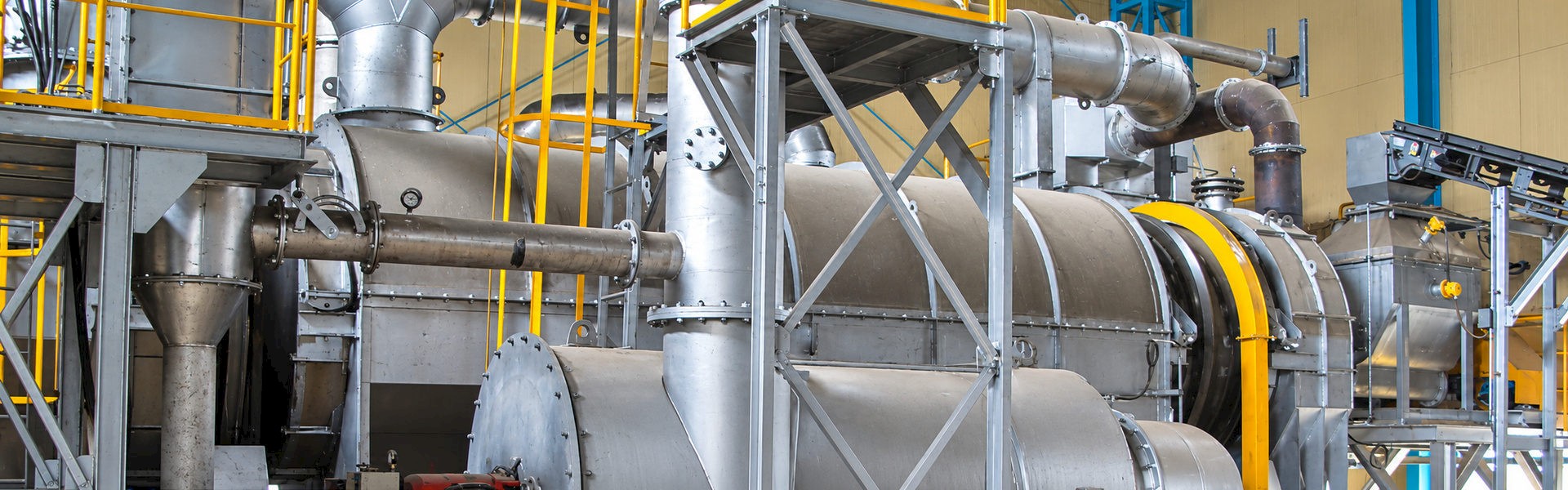

Klean Industries Biomass Power Biochar Rotary Kiln Technology.

DECARBONIZING JAPAN’S ENERGY GRID WHILE ENHANCING AGRICULTURAL YIELDS WITH CLEAN BIOMASS-TO-BIOCHAR TECHNOLOGY

Sustainable Development Goals

Project Status:
OPERATING 2013 | Additional Project Under Consideration
Organizations Involved:
Klean Industries, Chubu Electric Power, Seiko Epson Corporation, Toyama Research Institute
Services / Equipment:
Design & Engineering, Due Diligence, Consulting, Component Supply

Local wood residue can supply renewable electricity and become a valuable soil product within the same facility. Our Japan biochar project combines these opportunities in a modular 1 MW system, producing about 1,000 tonnes of biochar annually and delivering a reported combined climate benefit of more than 6,500 tonnes of CO2 equivalent per year.

The commercial significance extends beyond electricity generation. Recovering biochar preserves some biomass carbon in a product that can improve soil performance and support long-term carbon storage. It connects an energy asset with agricultural customers and, where the applicable requirements are met, carbon-removal markets.

For communities with suitable wood residues, this is an opportunity to retain more value locally: put the energy to work, develop a market for the carbon-rich product and build the evidence needed to recognize its climate benefit.

The Challenge

Connect local resources with dependable energy and productive land.

Japan's demand for more resilient energy supplies intensified after the Great East Japan Earthquake. Locally available biomass offered a way to broaden the energy mix while creating an outlet for suitable wood residues. Japan's biomass feed-in tariff framework helped support the development of this generation route.

The project challenge was to make the resource useful across more than one market. Electricity needed a viable grid and commercial arrangement. Biochar needed consistent quality and an application that rewarded its properties. The wood-chip supply had to reliably support both outputs.

For rural and forestry regions, these decisions are closely connected. Feedstock collection and transport affect plant economics; process conditions affect energy recovery and char quality; the receiving soil and crop affect agricultural value. A successful facility must be developed around that complete chain.

The Solution

Recover power while retaining useful carbon.

The modular 1 MW system thermally converts suitable wood-chip biomass, recovers energy for electricity generation, and retains a carbon-rich solid product as biochar. Its commercial purpose is to supply renewable power while recovering a material with a separate route to market.

The reported power capability is equivalent to the electricity needs of approximately 1,000 homes. Biomass generation can provide sustained output when feedstock supply, maintenance and plant availability are managed together. The project's FIT qualification adds a defined electricity-pricing framework, with revenue governed by its approved terms and actual generation.

Our contribution combines design and engineering, due diligence, consulting and component supply. That scope connects technology selection with the practical requirements of feedstock, equipment integration and product recovery.

Develop biochar around the customer's application.

Biochar gives the facility a second physical product. In suitable agricultural applications, it can improve soil structure and moisture retention while storing a stable portion of the original biomass carbon.

Japanese field trials cited in our project record report crop-yield increases of 10–30%, depending on soil and crop type. This makes application development commercially important: a grower's value depends on the biochar's properties, the soil's needs, and how the material is applied.

Agriculture is the central application here. Soil remediation, livestock bedding, and urban greening offer additional market-development opportunities where product quality and end-use requirements align. Matching the product to a defined buyer helps turn biochar recovery into a repeatable business.

Build carbon value from traceable performance.

The climate proposition has two distinct parts: emissions avoided when renewable electricity displaces fossil generation, and carbon retained in biochar placed into a suitable long-term use. Keeping those contributions separate makes the environmental account more useful to customers and investors.

Japan's J-Credit scheme includes a methodology for biochar applied to agricultural land. Eligible projects can therefore assess a further commercial route alongside power and biochar sales. Crediting depends on the applicable methodology, project registration, monitoring and certification; the plant's reported combined climate benefit is a different measure from issued carbon-removal credits.

KleanLoop™ offers digital traceability for project development, connecting material and operating records with the evidence customers and carbon-accounting processes need. Its deployment and reporting scope are defined for each engagement.

The Outcome

An operating reference with value across energy and agriculture

Our published project record identifies the Japan facility as operating and reports the following system highlights:

Performance area Reported project figure
Power system 1 MW
Household electricity equivalent Approximately 1,000 homes
Biochar production Approximately 1,000 tonnes per year
Combined annual climate benefit More than 6,500 tonnes of CO2 equivalent from fossil-electricity displacement and biochar carbon storage
Agricultural trials cited 10–30% crop-yield increases, depending on soil and crop type

These figures describe the reference presented by Klean. The climate total combines avoided emissions and carbon storage; the crop-yield range describes the cited field trials and varies with the application.

The wider commercial lesson is that the products should be developed together. Electricity provides an energy-market outlet, while biochar creates a route into agricultural and other qualified material applications. Carbon recognition can add value where a project establishes the necessary evidence and rights.

Our published market estimate puts the Japanese biochar opportunity above ¥30 billion, or about US$200 million. For an individual development, the decisive opportunity lies in a defined share of that market: contracted biomass, an electricity customer, biochar buyers, and a clear plan for carbon accounting.

This model is relevant to other regions with suitable biomass residues and local demand for power and soil products. For island and import-dependent markets, its attraction is the ability to develop domestic resources around customers close to the plant. Plant sizing and product selection must follow the available feedstock and those customers' requirements.

3 PROJECT TAKEAWAYS

1. Two physical products strengthen the commercial proposition.

The 1 MW reference combines electricity generation with about 1,000 tonnes of annual biochar production, linking one biomass supply chain to distinct customer markets.

2. Carbon value begins with the production and use records.

The reported benefit exceeds 6,500 tonnes of CO2e annually across power displacement and biochar storage. Separating those contributions creates a clearer basis for evaluating eligible carbon revenue.

3. The local market determines the repeatable opportunity.

Reliable wood supply, electricity terms, and qualified biochar offtake are central to replication. The cited 10–30% crop-yield improvements show why application testing and agricultural partnerships matter commercially.

These takeaways highlight selected lessons from this case study, not an exhaustive account. Klean brings deeper technical expertise and commercial insight to each project through tailored engagements.

WHAT DO THESE LESSONS MEAN FOR YOUR PROJECT?

For a forestry business, municipality, agricultural cooperative, or energy developer, the starting point is a connected resource and customer plan. How much suitable biomass is available, what does it cost to deliver, who will buy the electricity, and which biochar specification will serve the intended market?

We can assess those relationships through a defined project-development engagement. New equipment projects follow Detailed Equipment Quotation (DEQ) → Detailed Feasibility Study (DFS) → Front-End Engineering and Design (FEED). The engagement package outlines the work; the paid DEQ proposal establishes the preliminary equipment configuration and technical and commercial basis for the next stage. Advisory and existing-plant assignments are scoped to their specific needs.

Discuss Your Biomass Power and Biochar Project Today >> GO.

LEARN MORE

ABOUT THE INFORMATION PRESENTED

This case study shares selected project information. Commercial agreements, process details, and proprietary know-how remain confidential and subject to the parties' permissions. Project-specific disclosures and access are addressed within an agreed engagement.

The project connects with the United Nations Sustainable Development Goals through renewable energy (Goal 7), local economic activity (Goal 8), industrial innovation (Goal 9), resource recovery (Goal 12), climate action (Goal 13), and responsible land management (Goal 15).
